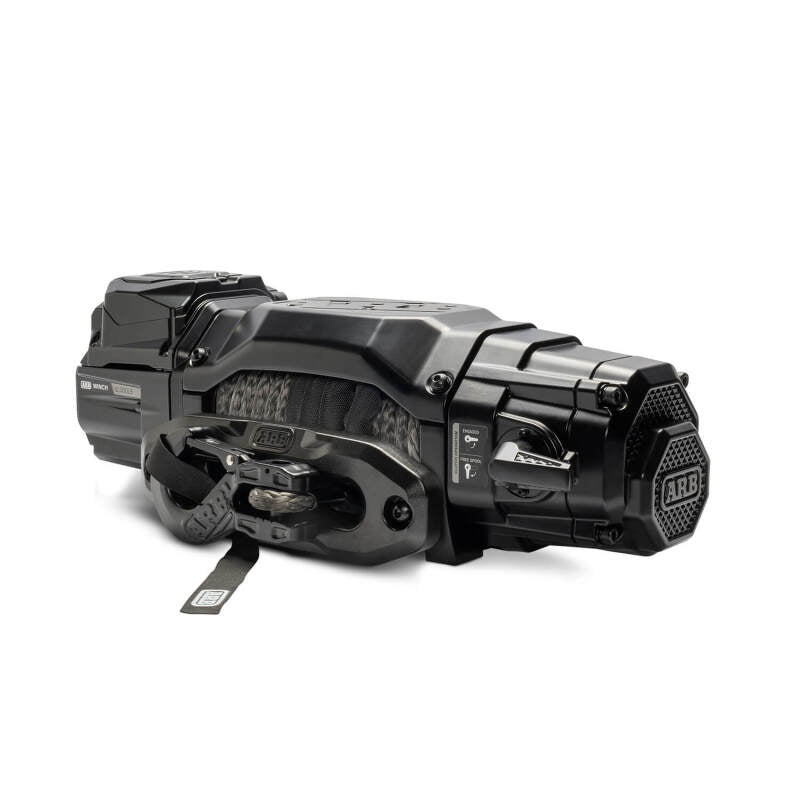

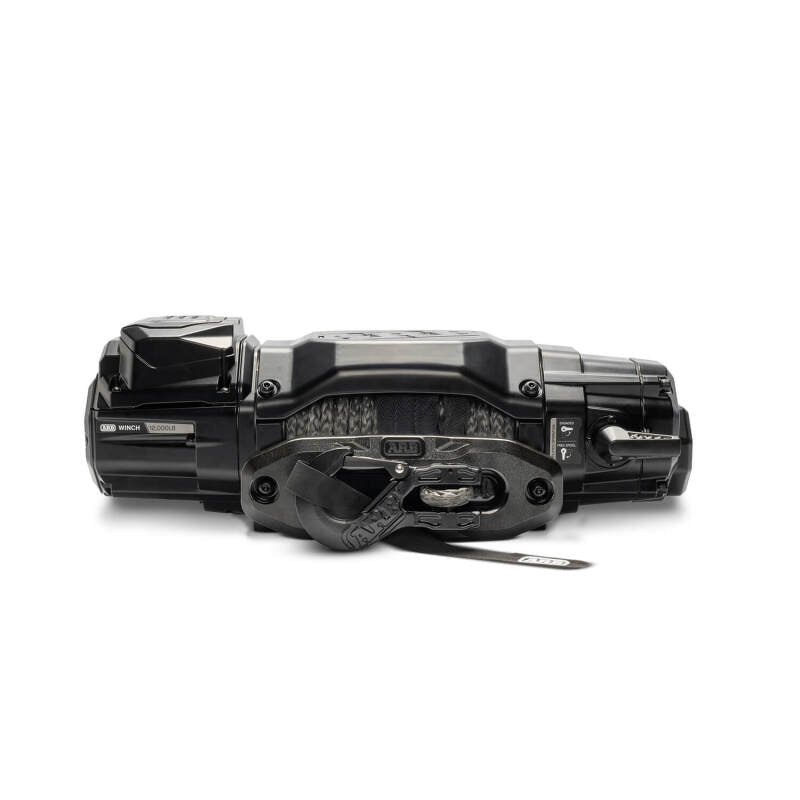

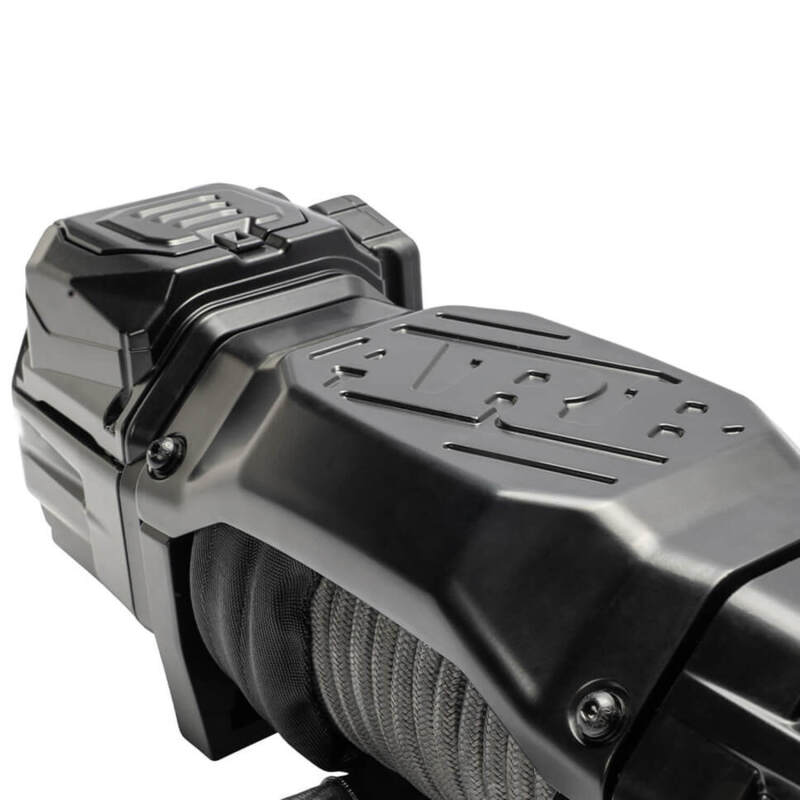

The ARB 12,000 lb Synthetic Winch represents the next generation of winch engineering, built around a compact, integrated motor control system that delivers clean fitment, smooth operation, and exceptional reliability. Designed for modern vehicles equipped with advanced sensors and tight bumper tolerances, the winch’s all‑in‑one control unit sits inside the housing—eliminating the need for a bulky external control box and improving installation flexibility.
A custom Albright contactor provides seamless power delivery, while the direct‑connection layout increases motor efficiency for faster, more responsive performance. The winch features a 4‑stage hardened steel gearbox for maximum strength, a one‑piece bridging plate for improved torsional rigidity, and a tuned 12‑volt motor that delivers fast line speeds under load. With an IP68 dust and water rating, the system is built to withstand harsh environments and long‑term use.

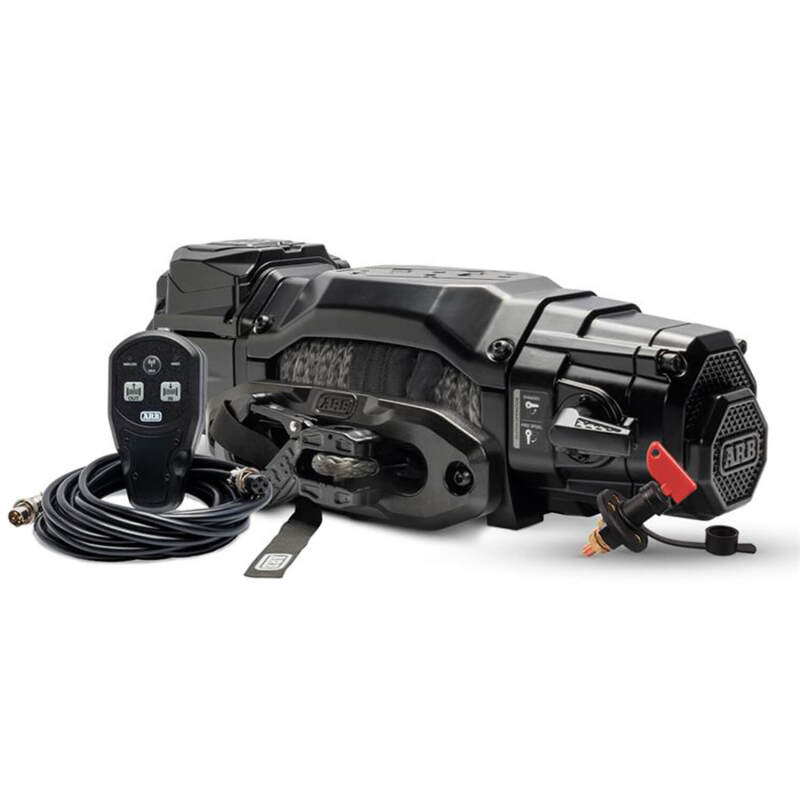

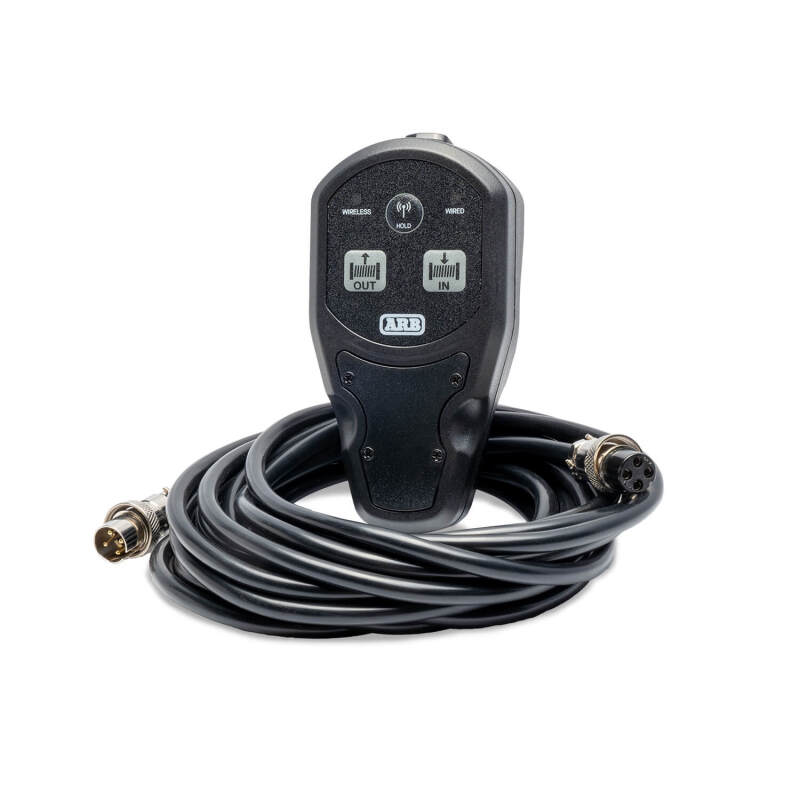

Control is handled through a compact dual‑mode remote that operates via 2.4GHz wireless up to 40 meters or through a 5‑meter wired connection. A remote‑mounted control plug allows hidden winch installations without sacrificing accessibility. The included 500‑amp isolation switch features a stainless lanyard and protective dust cover for safe, reliable operation.
Why Drivers Choose the ARB 12,000 lb Synthetic Winch
- Integrated motor control unit for compact, modern bumper fitment
- Custom Albright contactor improves efficiency and eliminates external control boxes
- 4‑stage hardened steel gearbox for maximum durability and fast line speeds
- IP68 rating protects against dust and water intrusion
- Wireless or wired remote operation with long‑range 2.4GHz connectivity
- Gearbox‑mounted brake provides 100% load holding and controlled unspooling
- Designed for long service life in demanding off‑road environments
Additional Details
- Rated Capacity: 12,000 lbs
- Rope Type: Synthetic
- Control System: Integrated motor control with Albright contactor
- Remote: 2.4GHz wireless + 5m wired lead
- Gearbox: 4‑stage hardened steel, 171:1 ratio
- Brake: Gearbox‑mounted, 100% load holding
- Ingress Rating: IP68
- Isolation Switch: 500A with stainless lanyard and dust cover
- Clutch Handle: 16‑position clockable design
- Mounting: Remote control plug for hidden installations
Technical Resources
Warranty
Installation Instructions
Key Features

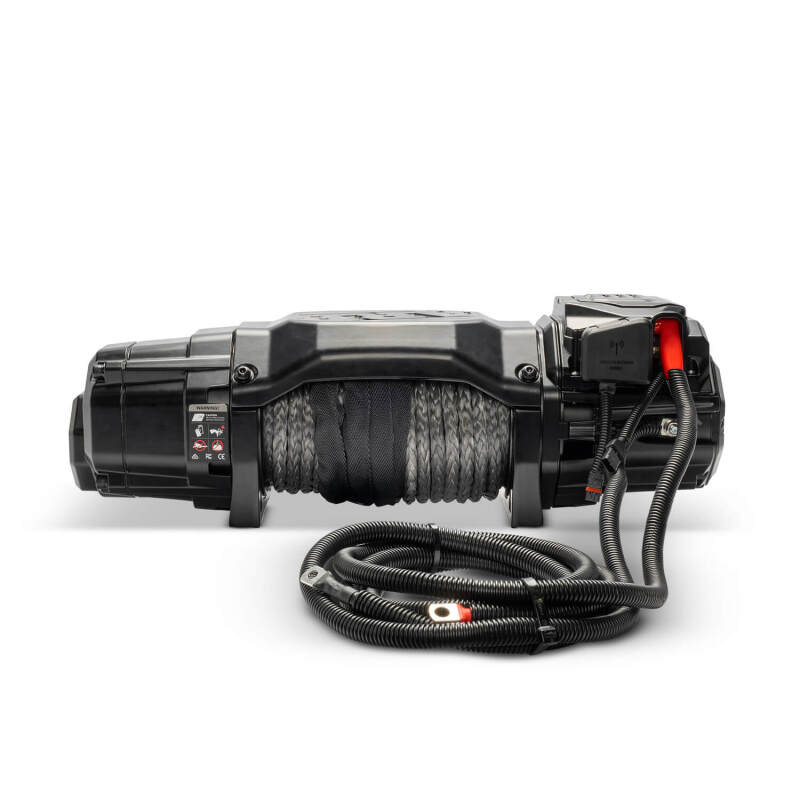

- Prewired connections and versatile mounting options for fast installation
- Custom Albright contactor improves efficiency and eliminates bulky control boxes
- 500A isolation switch with universal mount, stainless lanyard, and dust cover
- 4‑stage hardened steel gearbox with 171:1 ratio for strength and speed
- Dual‑connection remote with 2.4GHz wireless and sealed circuitry
- Gearbox‑mounted brake ensures 100% load holding and safe unspooling
- Remote‑mounted control plug for low‑profile or hidden winch installations
- One‑piece bridging plate for increased torsional strength
