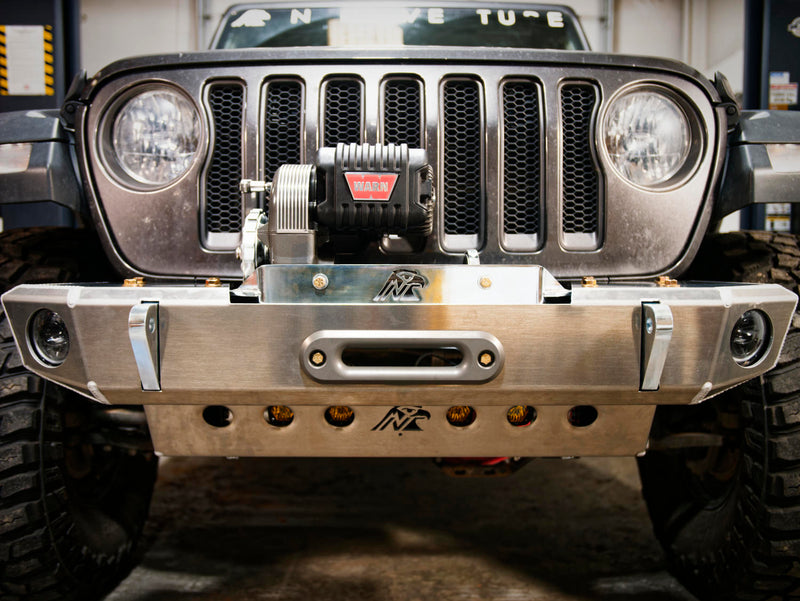

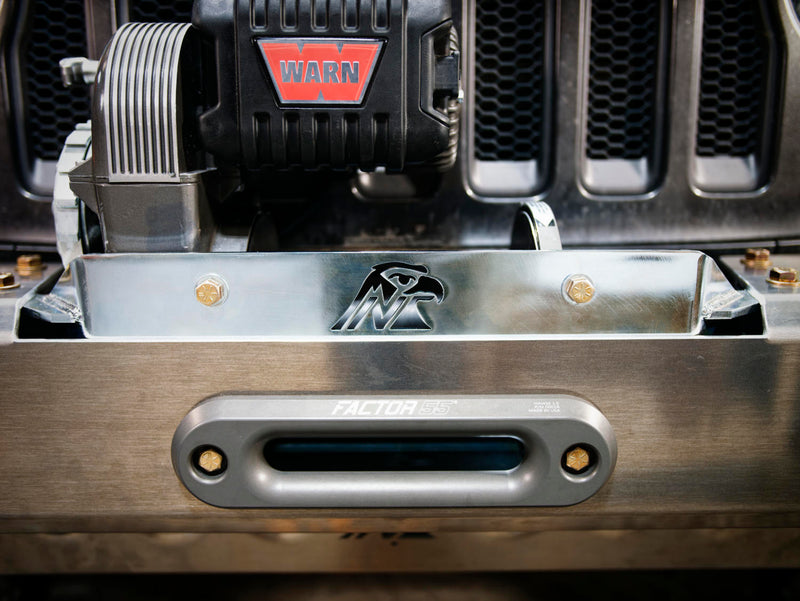

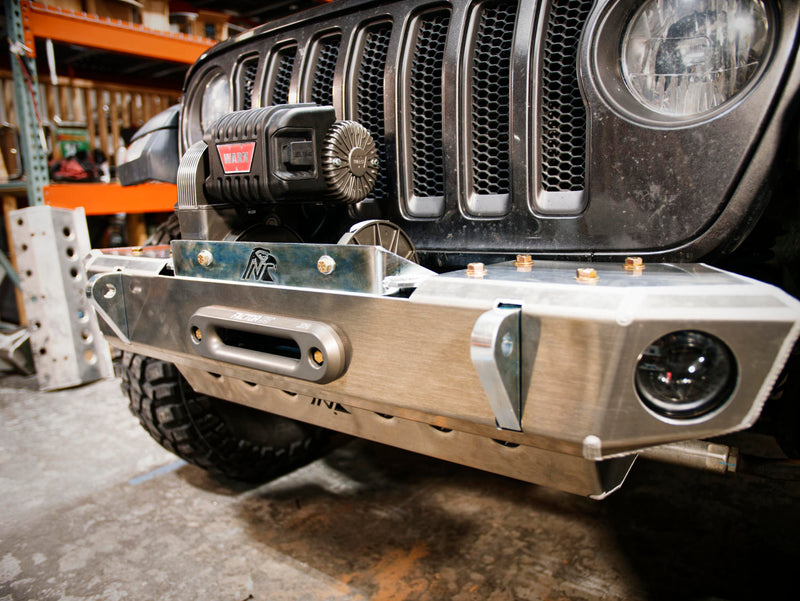

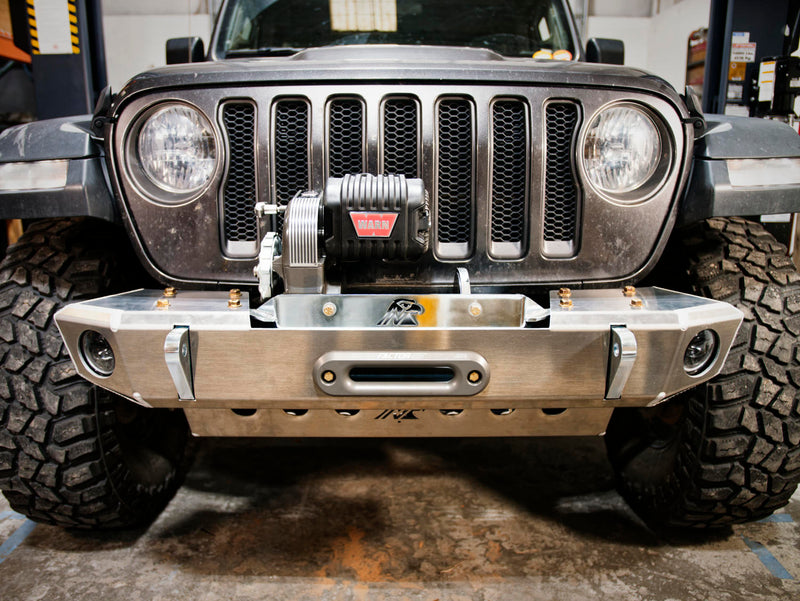

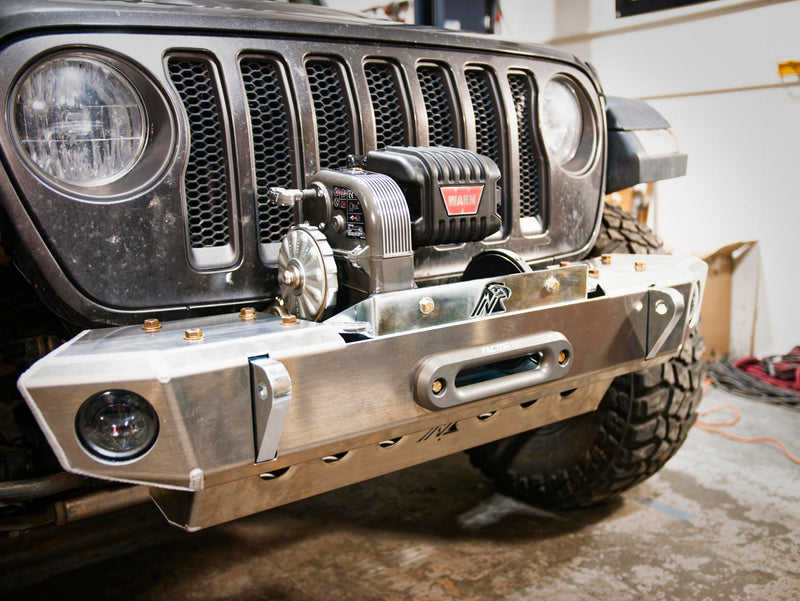

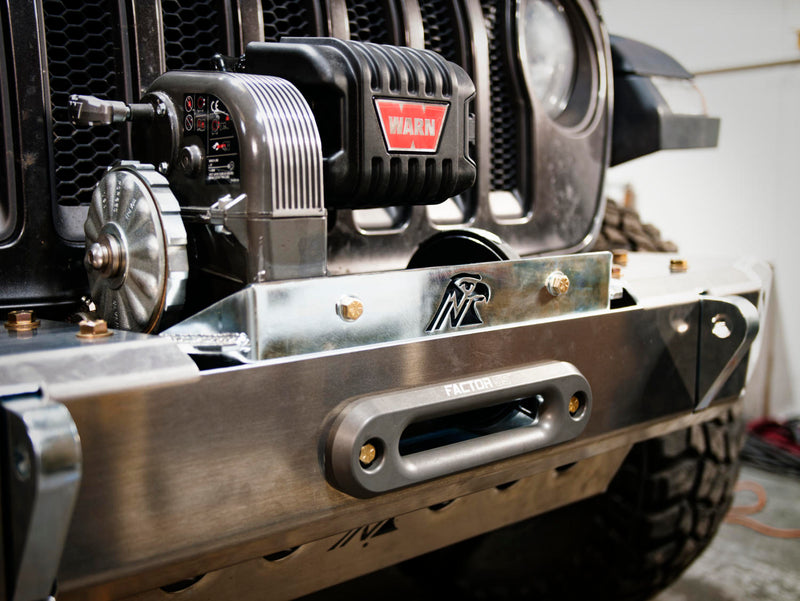

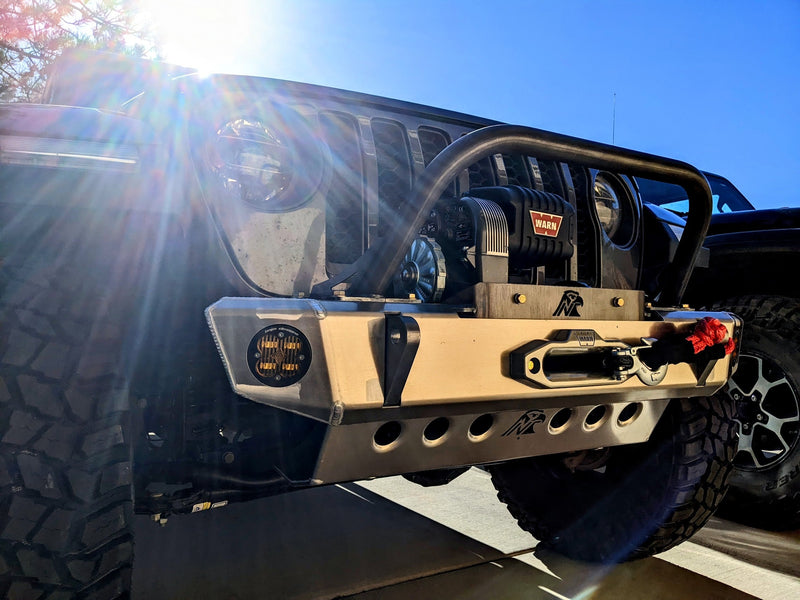

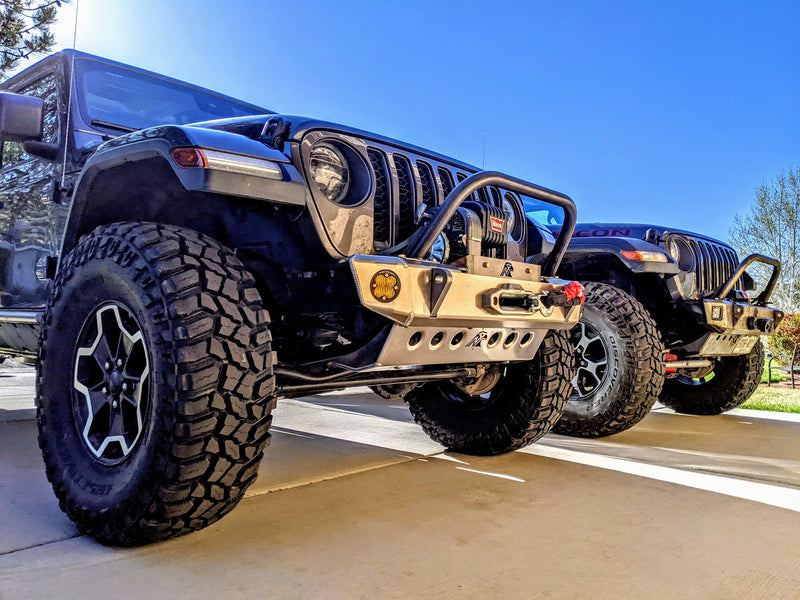

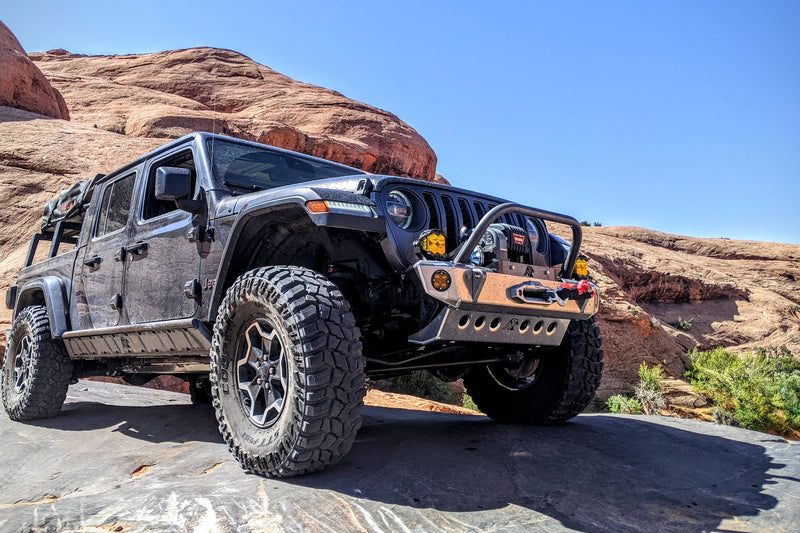

The JL/JT Front Bumper — 8274 Aluminum Adventure Series is purpose‑built for Jeep owners running one of the fastest, most trusted recovery winches ever made: the WARN M8274. By redesigning the Adventure Series bumper with thicker yet lighter aluminum components, this version delivers exceptional strength, reduced weight, and the clearance needed to support the legendary upright winch design.
NOTE: This bumper will only fit the WARN M8274 Winch

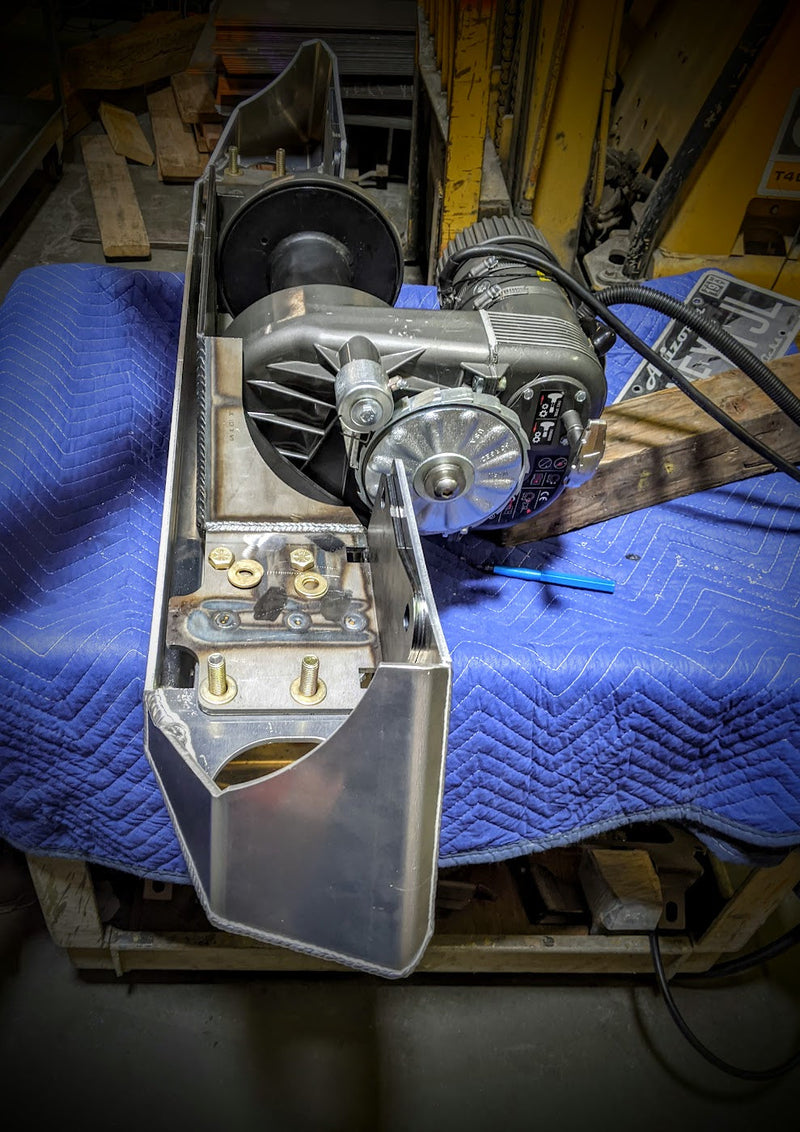

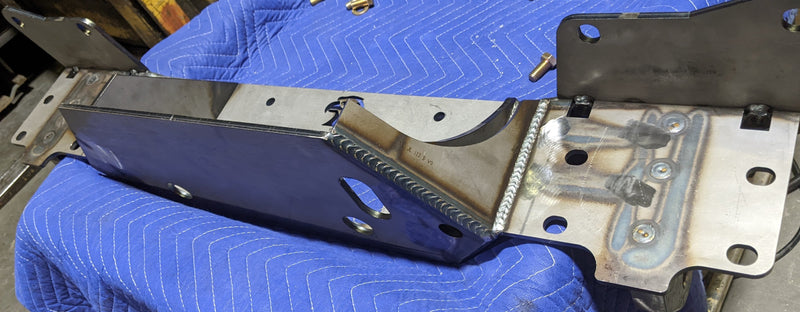

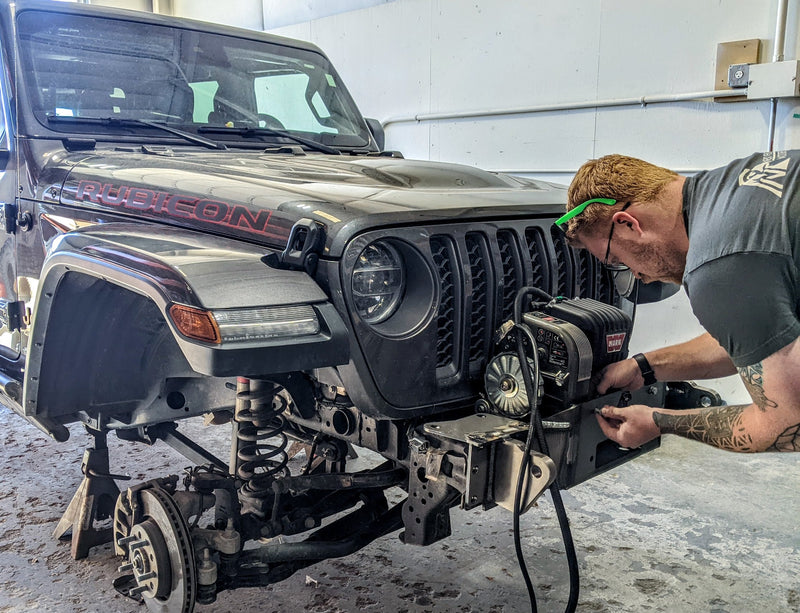

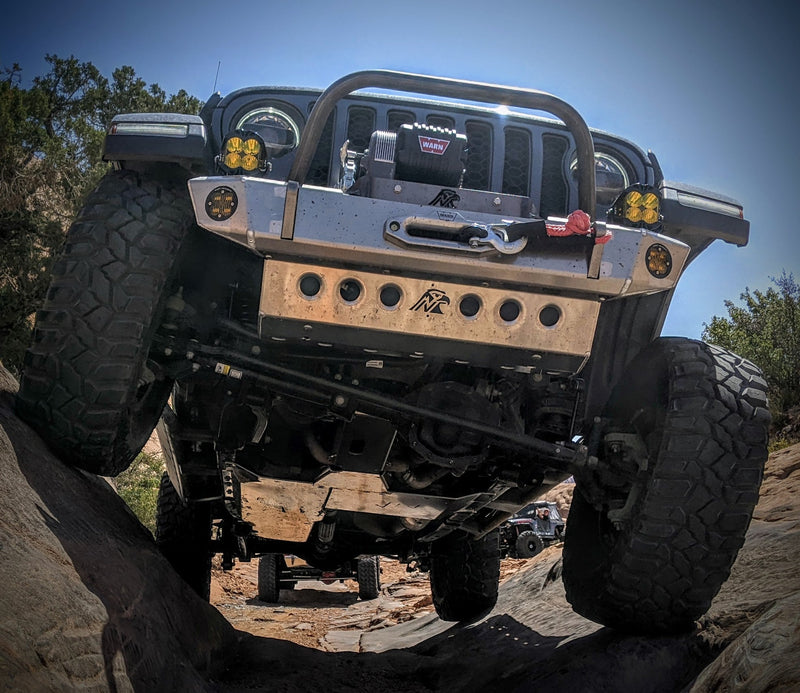

Crafted from a combination of 1/4" and 3/16" aluminum paired with 1" thick steel recovery points welded to a 1/4" steel inner winch tray, this bumper is lightweight where it matters and stout where it counts. It can be run as an ultra‑high‑clearance bumper or paired with the optional lower skid, which fully protects the Rubicon sway bar disconnect motor—unlike many skids that leave the bottom or rear exposed.

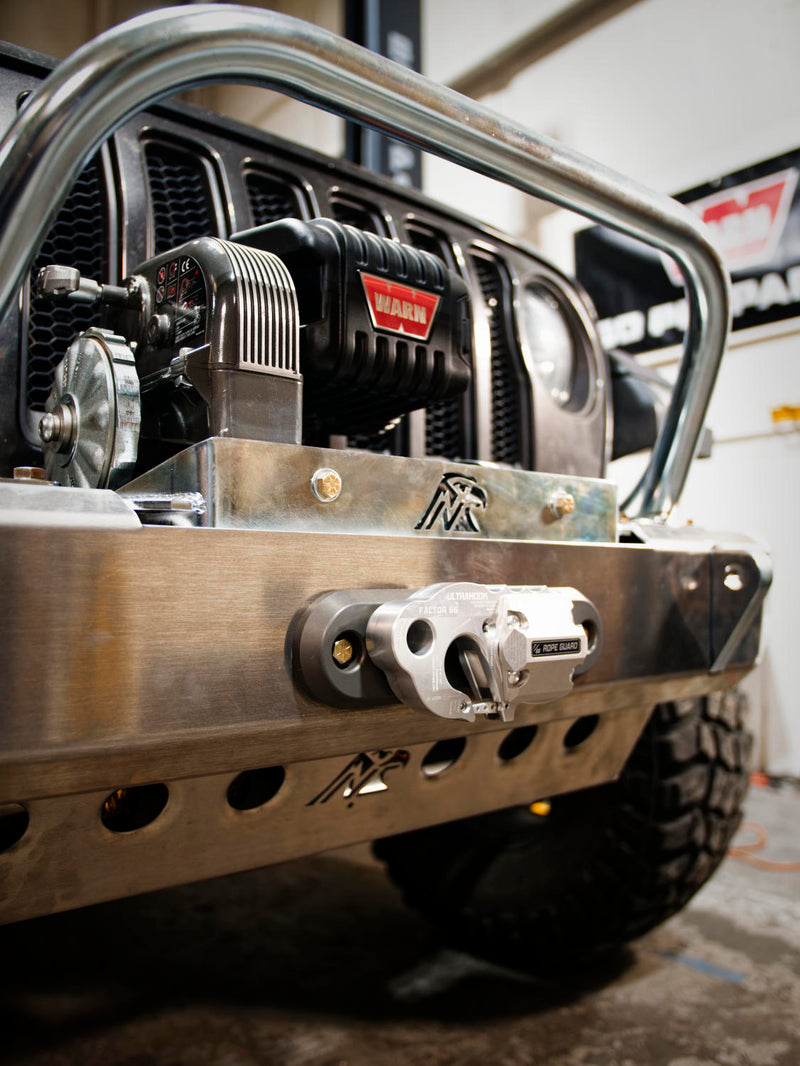

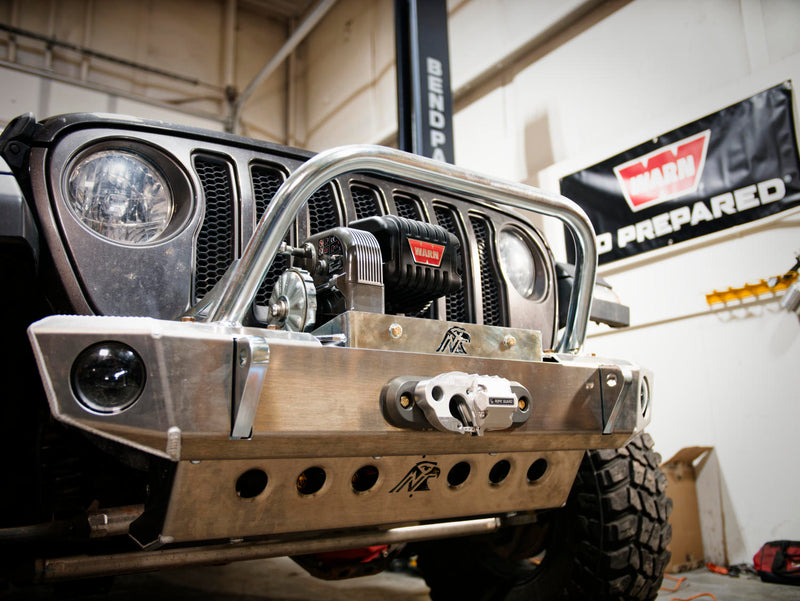

The optional bolt‑on stinger is available in 7" and 11" heights and is built from 2" 0.120‑wall DOM steel. When installed, the stinger ties directly into the steel winch tray, creating a unified structural assembly between the bumper shell, winch tray, and stinger for maximum strength.
Lighting Options

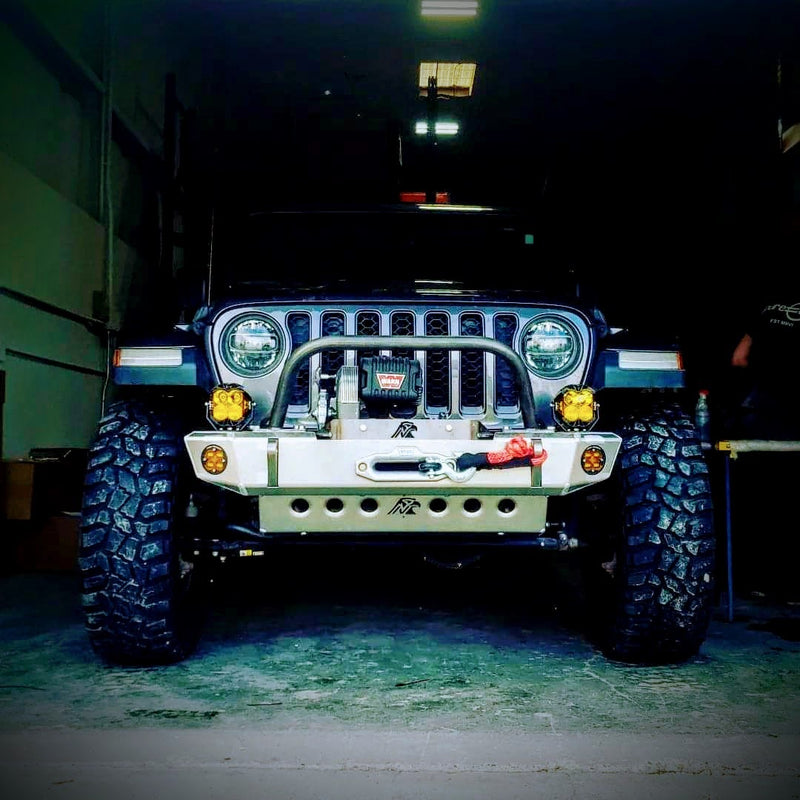

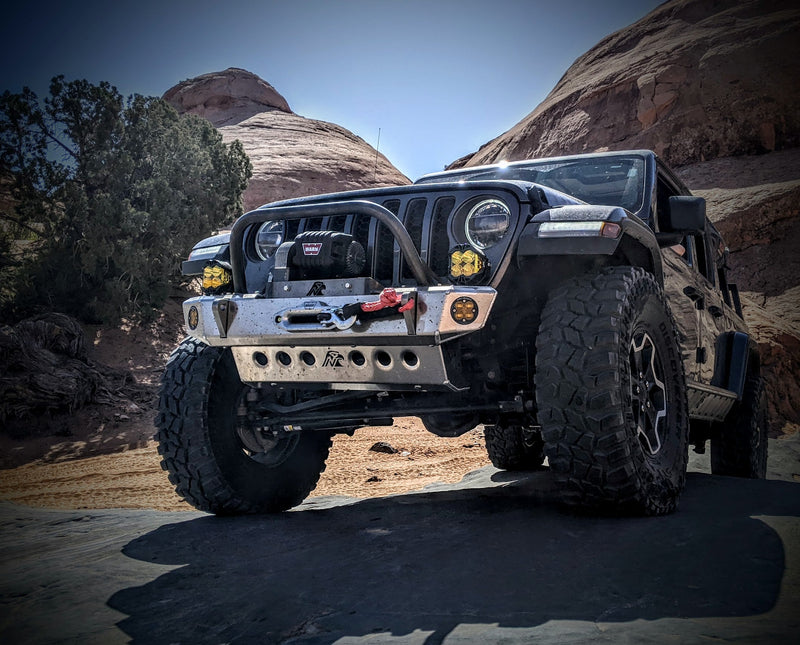

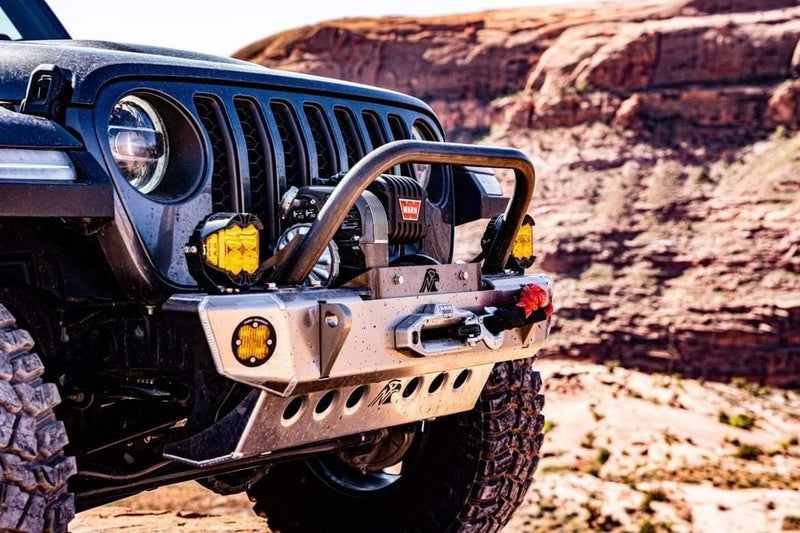

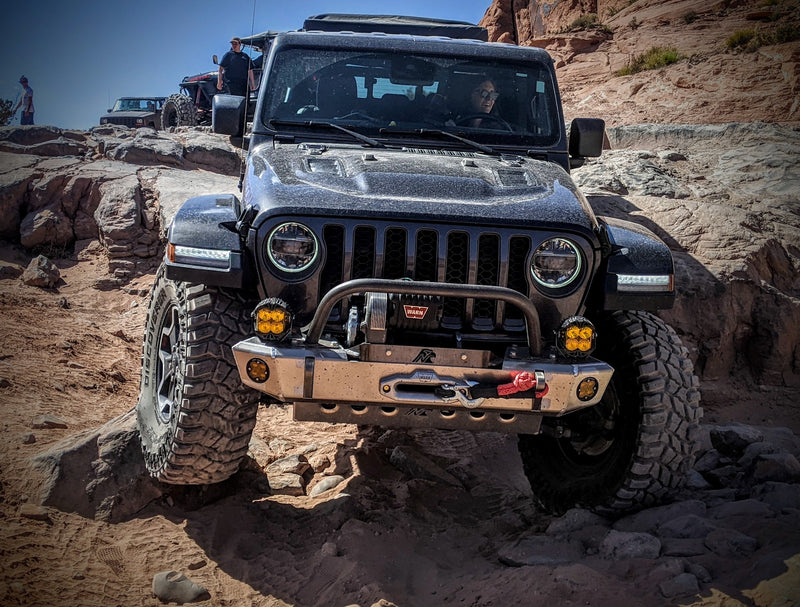

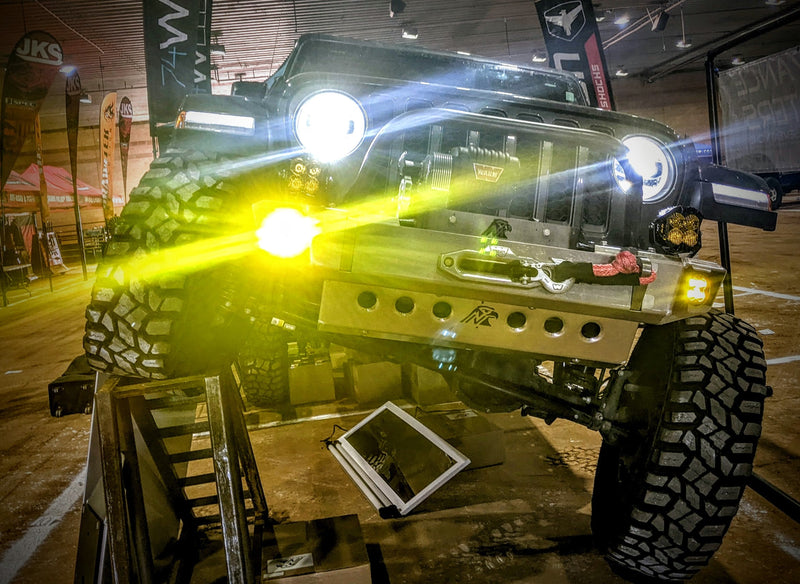

This bumper is designed to reuse your factory fog lights inside the winch tray. If you prefer Baja Designs SAE fog lights (as shown in some photos), simply note this in your order. LP4 and LP6 lights can also be mounted on top of the bumper.
Why Drivers Choose the 8274 Aluminum Adventure Series
- Purpose‑built for the WARN M8274 — the fastest pulling winch you can mount on a JL/JT
- Lightweight aluminum construction with steel reinforcement where needed

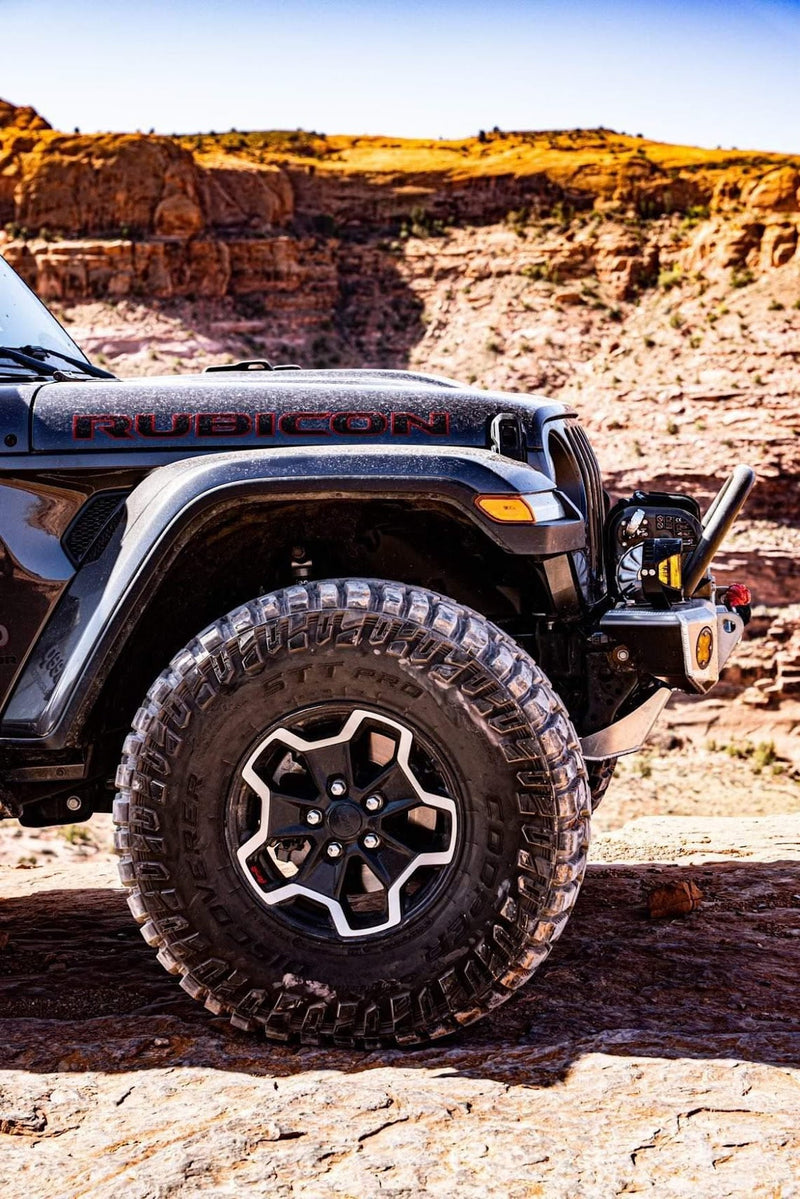

- Ultra‑high‑clearance design for maximum approach angle
- Optional lower skid fully protects the Rubicon sway bar disconnect motor
- Optional bolt‑on stinger ties directly into the steel winch tray
- Compatible with factory fog lights or Baja Designs SAE fog lights
- LP4 and LP6 top‑mount lighting compatibility

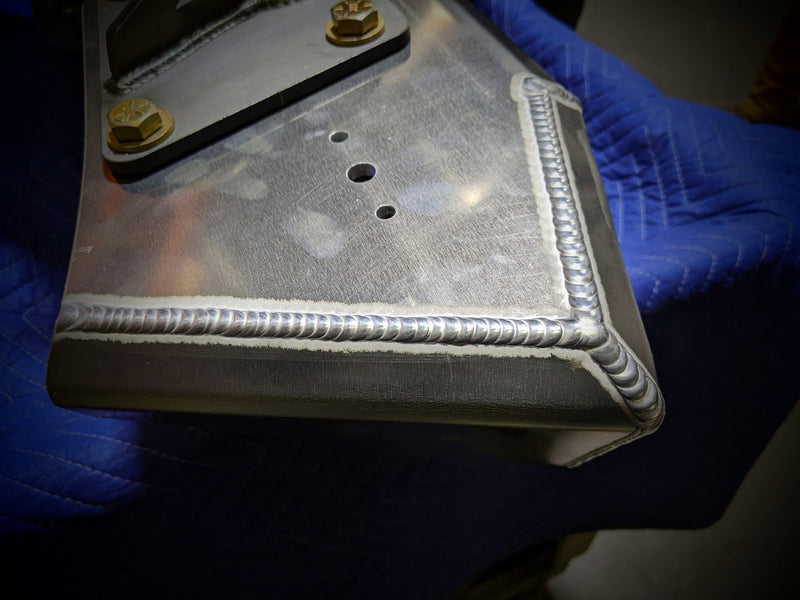

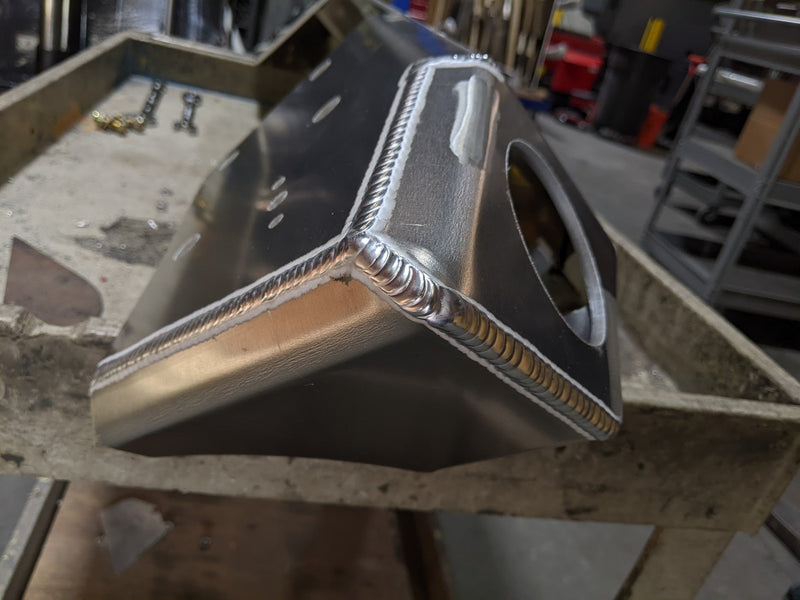

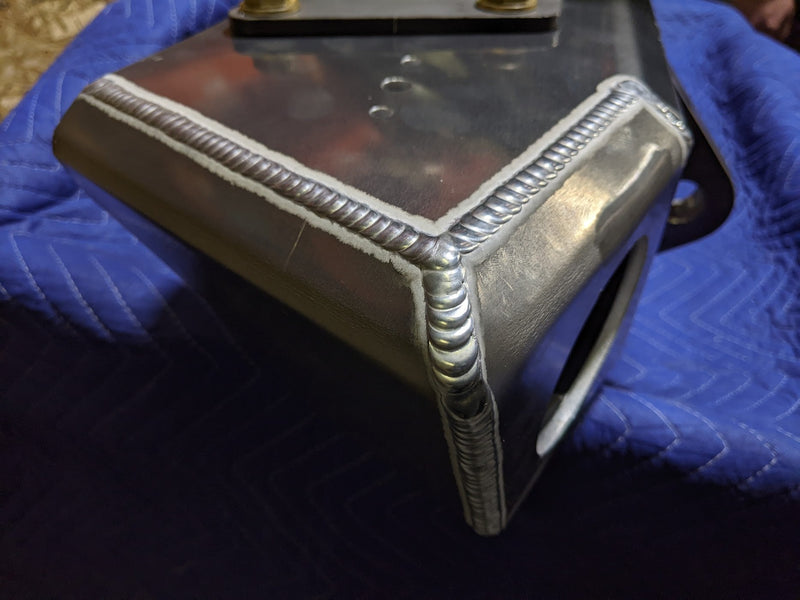

- Proudly laser cut, CNC formed, and hand‑welded in the USA
Additional Details
- Fitment: Jeep Wrangler JL & Jeep Gladiator JT
- Winch Compatibility: WARN M8274 only
- Construction: 1/4" & 3/16" aluminum body; 1" steel recovery points; 1/4" steel winch tray
- Recovery Points: .900" chamfered eyelets; compatible with soft shackles & 7/8" shackles
- Towing: Recovery points accept most tow bar pins; aluminum body carries no tow load
- Finish: Ships bare metal unless powder coat is requested
- Powder Coat: Available by request; lead times vary
- Lighting: OEM fog light compatible; Baja SAE optional; LP4/LP6 top‑mount compatible
FAQ
-
What winch can I use with this bumper?
- This bumper only fits the WARN M8274. For standard winches, see the Aluminum Adventure Series Front Bumper.
-
Are soft shackles compatible?
- Yes. The .900" chamfered eyelets accept soft shackles and standard 7/8" shackles.
-
Can I use my factory front skid plate?
- No. The increased clearance places the bumper higher, leaving a gap the factory skid cannot reach.
-
Can I flat tow using the recovery points?
- Yes. The recovery points are machined for tow bar pins and tie directly into the steel winch tray.
-
Can I order this bumper powder coated?
- Yes. Lead times vary depending on color and workload.
-
What fog lights fit this bumper?
- There are three OEM fog light mounting patterns. Need help identifying yours? Click here.
Key Features
- Lightweight aluminum construction with steel reinforcement
- High‑clearance profile for maximum approach angle
- Soft‑shackle compatible recovery points
- Flat‑tow capable via integrated steel recovery points
- Optional skid plate for full sway bar disconnect motor protection
- Optional bolt‑on stinger ties into steel winch tray
- OEM fog light compatibility with Baja SAE options
- LP4/LP6 top‑mount lighting compatibility
- Laser cut, CNC formed, and hand‑welded in Colorado, USA
- Bare metal finish ideal for custom powder coat
Additional Details
Products are designed to fit vehicles with varying factory tolerances; minor hand‑fitting may be required. Bare metal products may show surface imperfections from handling and fabrication—these are easily concealed with textured powder coat. Smooth finishes may require additional prep work. Lead times are estimates and may vary due to production realities. All Next Venture Motorsports products are proudly built in Grand Junction, Colorado.
